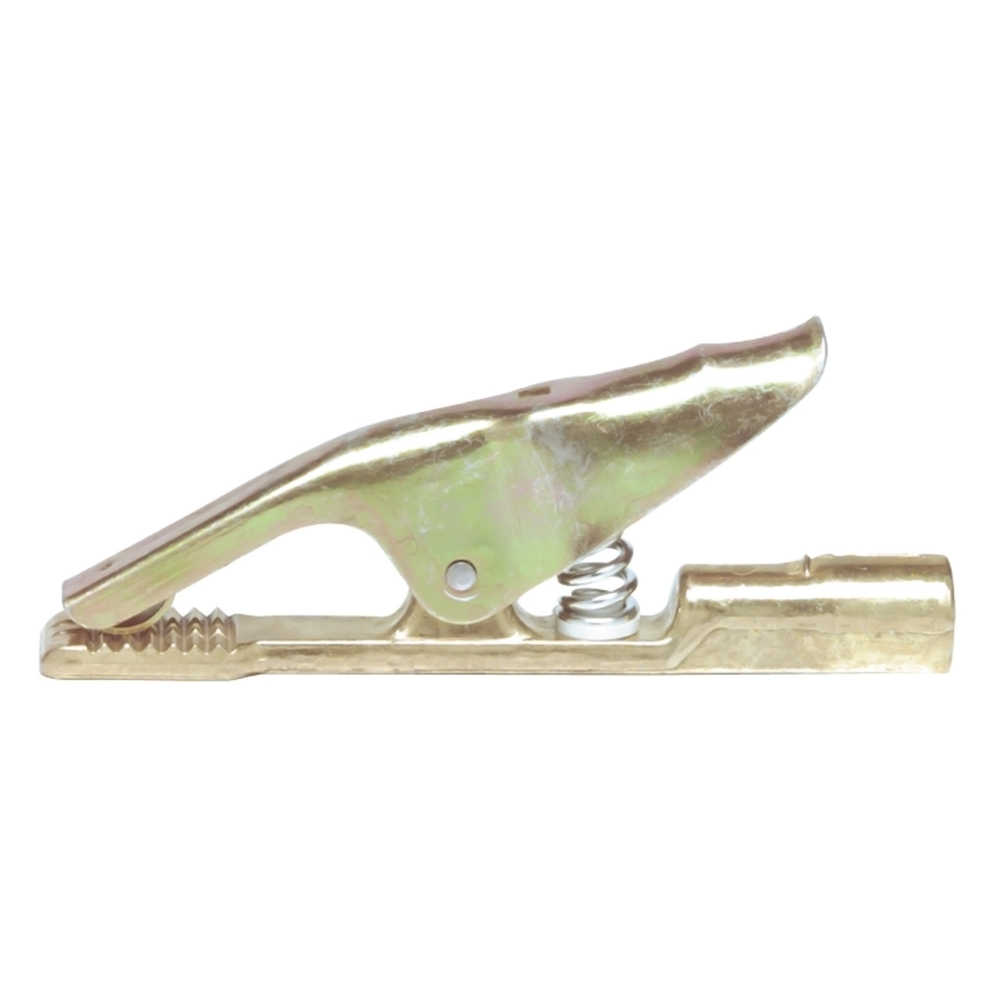

Jackson Safety Brand GC-2 Ground Clamps feature large contact areas, high-clamping pressure and long-levered handles for easy jaw opening. The clamps have fully insulated pivots and springs. The cable jacket is held securely inside the conductor body with a cable bar for improved holding ability and longer cable life. Forged copper alloy ground clamps have higher conductivity, fewer residents and run at a cooler temperature at higher AMPs for better arc starting. The clamps feature serrated jaws to cut through rust and contamination for a superior connection. These Ground Clamps by Jackson Safety are a must-have tool for any serious welding project.
1 ¼ inch jaw opening with long-levered handle
Cable connection capacity: 4 through 1/0
Each ground clamp weighs 16 ounces
Made of forged copper alloy for higher conductivity and feature a serrated clamp
