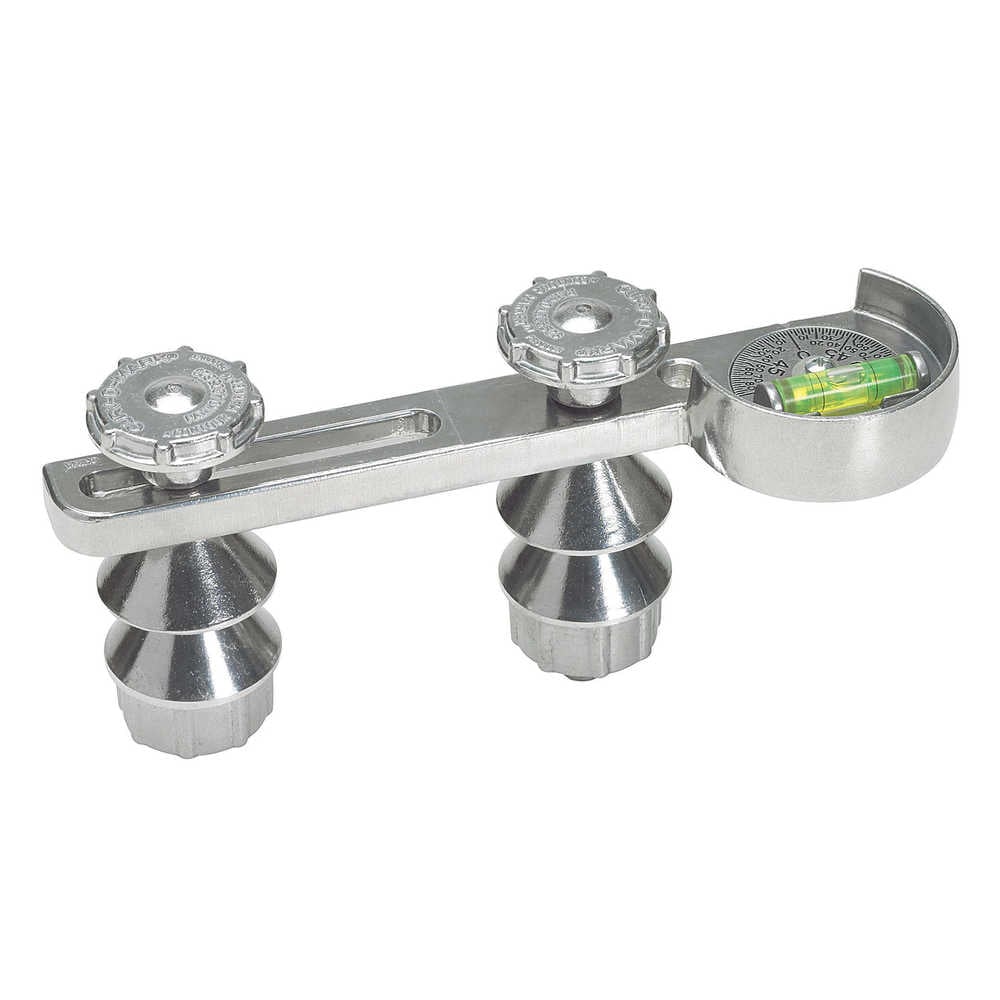

When you need multi-tasking tools for your job, the #20 Dual-Angle Flange Level by Jackson Safety is a smart choice. It’s a versatile tool that can be used as a dial degree utility level or, with attachments, for two-holing flange alignment. The unit is made of cast aluminum with a protective housing containing an adjustable DSL. It’s also fitted with a threaded, self-aligning conical spacer and conical nut and bolt units for fastening the Level to a pipe flange. One of the nut and bolt units is stationary, while the other slides up to 5.5 inches along a slot in the level to accommodate various flange bolt hold spacing from 2 to 5.5 inches. The body of the tool is .5 inch thick with a machined surface. The level bubble is protected from weld splatter and breakage with a built-in housing around the DSL.
Made of lightweight cast aluminum, non-magnetic, can be used on PVC pipe
Contains an adjustable DSL in protective housing (protects from weld splatter and breakage)
Fitted with self-aligning conical spacer and conical nut and bolt units
One stationary nut / bolt, other slides up to 5.5 inches
