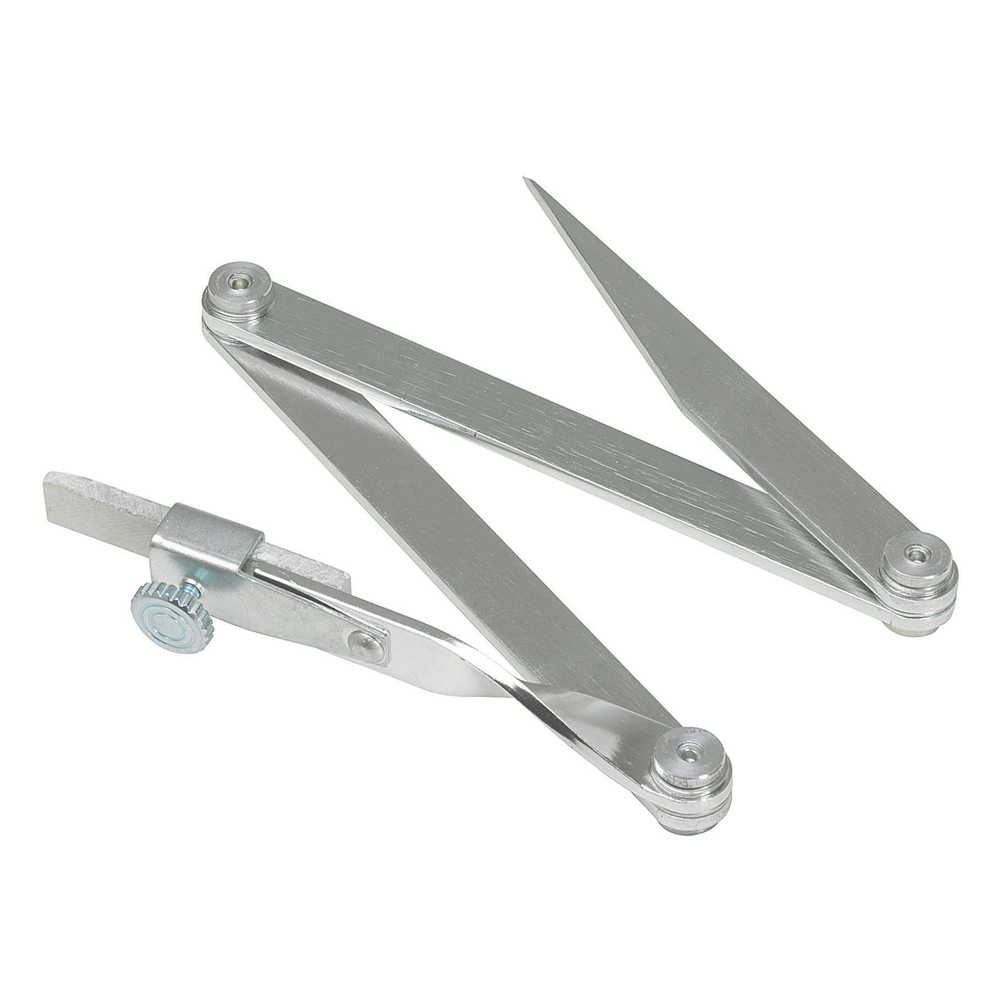

The Jackson Safety Radius Marker (standard) has a folding design, which allows you to conveniently fit it into a shirt pocket or tool belt. The Radius Marker is designed to scribe circles up to 48” (a 24” radius) and features sturdy friction joints to help maintain rigidity and accuracy. The tool is made of lightweight aluminum, for durability. A soapstone crayon comes installed and the scribe holder will accept a round, square or flat soapstone crayon, pencil or steel point scribe. The Contour Radius Marker comes in four sizes – from mini to jumbo.
Made of durable, lightweight aluminum, comes with a soapstone crayon
Marks circles up to a 24 inch radius
Also available in mini, small and jumbo (this model is Standard)
Sturdy friction joints to help maintain rigidity and accuracy in marking
Instructions for using the Operating Cost Analysis Tool
The Operating Cost Analysis Tool is divided into four sections:
- Section 1: Input Data - raw data used in the calculations
- Section 2: Output Data - calculated data based on Operating Cost formulas
- Section 3: Summary Data - a comparison of the initial and energy costs for each option
- Section 4: Graph Data - a graphical comparison of the initial and energy costs for each option
Enter the appropriate data on the "Input Data" page
If necessary, you may change the default data that automatically appears in the input fields.
All of the WHITE cells must contain input data for the model to work. If fields are left blank or as zeros the data will not be complete. Not a number (NaN) and infinity values indicate an error.
The system airflow rate is set at a default equal to 2000cfm multiplied by # of Filters. The system airflow rate appears when you enter a value in the "# of Filters" field. To change this default, simply enter the actual system airflow in this field and do not change the "# of Filters" field.
To clear all fields and reset the inputs to their defaults, use the "Clear All" button. To reset only the input fields, use the "Default Input" button.
The "Calculations" section displays the calculated data based on the input data. These calculations are use to create the Summary Data. It contains the following sections: 1) Initial Investment Costs 2) Energy Costs.
Energy Calculations are based on the following formula:
Filter pressure drop is calculated as the straight line average between the initial pressure drop and the final pressure drop.
The "Calculations" section cannot be changed.
The "Summary Data" section displays a comparison of the results for each option. This page also recommends which option would realize the most savings.
The "Graph Data" displays a graphical comparison of the cost categories between each filter option.
Print each tab with the button in the lower right. This will print the text in black and white. Use the print button of your web browser to print in color.
